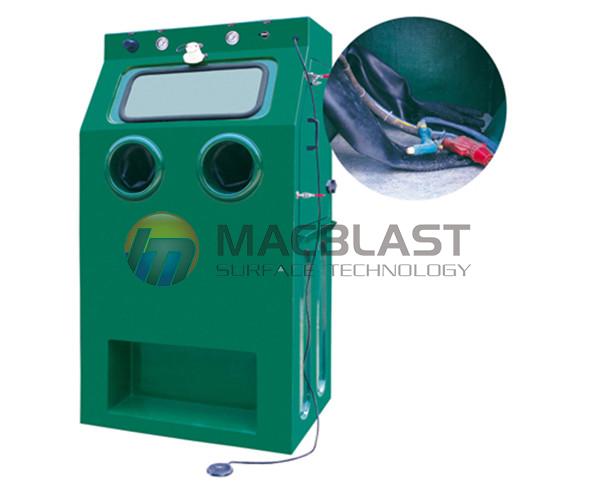

Manual wet sandblast cabinet

  • manual fibreglass body wet sandblasting cabinet for jewelery
manual fibreglass body wet sandblasting cabinet for jewelery

manual fibreglass body wet sandblasting cabinet for jewelery

  • fibre glass body
  • mini body
  • wet sandblasting
  • manual sandblasting
  • Product description: product description: Illuminating lamp: 220V, 13W energy-saving light Load bearing:80kg Net weight:230kg Power supply: 220V, 50HZ Separator motor: 220V, 50HZ, 250W Separator air flow: 8.5m3/min Compre
  • INQUIRY

Product technical specifications:
Our Macblast fibreglass body wet sandblasting cabinets are all built using reinforced fibreglass, with a submershible abrasive pump which is made of high quality polyurethane,our wet sandblasting cabinets process produces a sleek satin finish without subjecting the metal surface to harsh abrasive treatment.
Wet sandblasting is also non-hazardous, dust-free and prevents hours of messy cleaning.
Functions:
1.cleaning, degreasing of automotive components in various car workshops.
2.wax removal: replacing existing highly toxic and expense chemical cleaning methods, commonly used in the jewellery industry, with our wet sandblasting process.
Model: 9065W
Dimension of work cabinet: 900*650*650mm, fibreglass body
Illuminating lamp: 220V, 13W energy-saving light
Load bearing: 20kgs
Net weight: 120kgs
Power supply: 220V, 50HZ
Separator motor: 220V, 50HZ, 1100W
Mac-B type sandblasting gun, with 8*20*60mm boron carbide nozzle
Compressed air supply:pressure 2-7 bar, air flows 0.8~1.2 cubic meter per minute
First feed: 25kgs and 5 kgs abrasive media
Main features:
1. Newly designed and simply operation
2. High grade 3mm fibreglass construction body for lasting usage
3. Toughened polyurethane pump & impeller
4. Pneumatic window wiper
5.Door safety inerlock
6.Economical usage of abrasives and electricity
Application range:
Pre-treatment before electroplating and sand blasting to improve adhesion.
Cleaning: hammer forging, pressing, de-oxide by thermal treatment, de-rust and old piece renewal;
Polishing and unpolishing: all metal products, glass and plasthetics, surface treatment of jewellery, glasses, clocks.

Standard sandblasting machine series:

Cabinet model

 Mac Wet 4848W

 Mac Wet 6868W

 Mac Wet 9090W

Cabinet size(L)x(W)x(H)mm

600x480x1100

700x700x1620

900x900x1900

Work chamber(L)x(W)x(H)mm

460x460x250

680x680x520

870x870x800

Side door (W)x(H)mm

350x310

550x350

690x640

Electrical

220v/50hz/1phase

220v/50hz/1phase

220v/380v/50hz/

1phase/3phse

Blast Gun Nozzle

Boron carbide

Boron carbide

Boron carbide

Safety Switch

Yes

Yes

Yes

Pump Motor

370w

550w

1.1kw

Air Requirement

0.2-0.8m3/min

0.5-1.2m3/min

0.5-1.2m3/min

Water Requirement

8litre

25litre

25litre

Media Load(kg)

3kg

5kg

8kg

Sandblasting gun

1pc

1pc

1pc

Water cleaning gun

1pc

1pc

1pc

Standard color of body

blue

blue

blue
