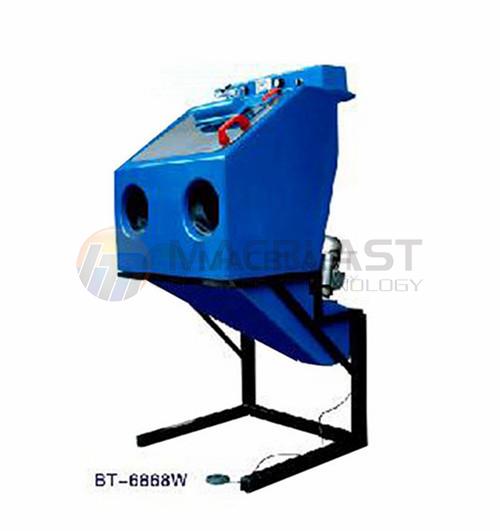

湿式手动喷砂机

Product technical specifications:

Model: 6868W

Dimension of worrk cabinet: 680*680*450mm, fibre glass body
Illuminating lamp: 220V, 13W energy-saving light
Load bearing: 20kgs
Net weight: 120kgs
Power supply: 220V, 50HZ
Separator motor: 220V, 50HZ, 550W
Mac-B type sandblasting gun, with 8*20*60mm boron carbide nozzle
Compressed air supply:pressure 2-7 bar, air flows 0.8~1.2 cubic meter per minute
First feed: 25kgs and 5 kgs abrasive media

Main features:

1. Newly designed and simply operation
2. Good processing efficiency and low energy consumption
3. Equipped with automatic sand recovery and cyclone separator system which could detach sand from dust and reduce abrasive consumption
4. Quality electrical components & parts for a long work life.

Application range:

Pre-treatment before electroplating and sand blasting to improve adhesion.
Cleaning: hammer forging, pressing, de-oxide by thermal treatment, de-rust and old piece renewal;
Polishing and unpolishing: all metal products, glass and plasthetics, surface treatment of jewelry, glasses, clocks.
