手动湿喷砂机

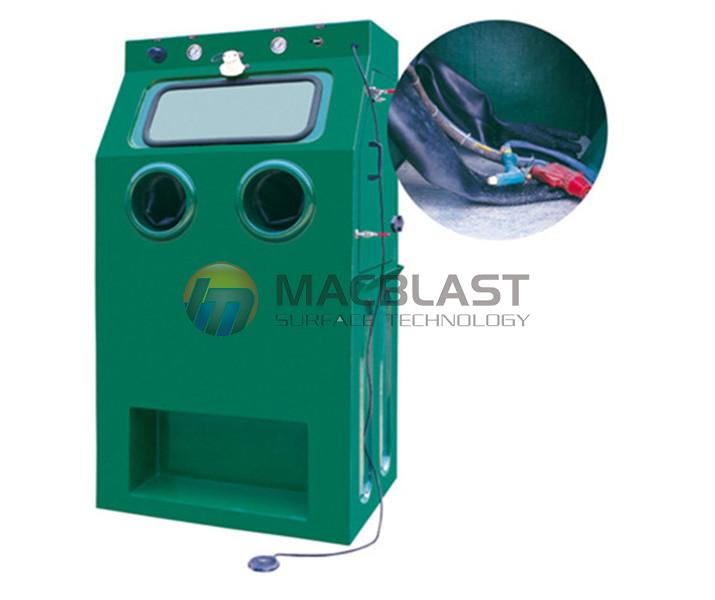

手动湿喷砂机(型号9065W)

产品描述：
在线订购

Product Information

Model: 9065W

Cabin dimension: 900×600×580,dry sandblasting machine
Illuminating light: 220V, 13W energy-saving light
Load bearing:　　80kg
Net weight:　　230kg
Power supply: 220V, 50HZ
Separator motor: 220V, 50HZ, 250W
Separator air flow: 8.5m3/min
Compressed air supply: 2~7bar (kg/cm2)
De-dust method: Bag type dust collector that adopts air-driven automatic and manual de-dust methods.

Property:

1. Newly designed and simply operation
2. Good processing efficiency and low energy consumption
3. Equipped with automatic sand recovery and cyclone separator system which could detach sand from dust and reduce abrasive consumption
4. Quality electrical components & parts for a long work life.

Application range

Pre-treatment before electroplating and sand blasting to improve adhesion.
Cleaning: hammer forging, pressing, de-oxide by thermal treatment, de-rust and old piece renewal;
Polishing and unpolishing: all metal products, glass and plasthetics, surface treatment of jewelry, glasses, clocks

Standard sandblasting machine series:

Cabinet model	Mac Dry 9060A	Mac Dry 9080A	Mac Dry 1010A	Mac Dry 1212A
Cabinet dimension(mm)	1150x600x1850	1150x800x1950	1250x1000x1950	1380x1200x2050
Dust Collector	lntegrated	lntegrated	lntegrated	lntegrated
Cyclone separator	Integrated/without	Integrated	lntegrated	lntegrated
Working Chamber(mm)	900x600x580	900x800x650	1000x1000x850	1200x1200x950
Door (W)x(H)mm	550X580	550X690	680X750	780X780
Electncal	220v/50Hz/1phase	220v/50Hz/1phase	220v/50Hz/1phase	220v/50Hz/1phase
Blast Gun Nozzle	Boron carbide	Boron carbide	Boron carbide	Boron carbide
Dust bag/Filter Cartndge(quantity:pc)	9/1Cartridge	9/1Calnidge	16/1Catridge	16/1Catridge
Blower Motor	370w	370w	750w	1100w
Air Requirement	0.5-1.2m3/min	0.5-12m3/min	0.5-1.2m3/min	0.5-1.2m3/min
Sandblasting gun	1pc	1pc	1pc	1pc
Air blow gun	1pc	1pc	1pc	1pc
Standard color of body	greywhite	greywhite	greywhite	greywhite
