standard style tumble rubber belt shot blasting machine for batch process like screw, nut

Model No.: Q32
Fuel: electric
Cleanliness: high cleanliness
Condition: new
Shot Blasting Machine Industry Used: small casting parts, forgings, such as nut, spring
Shot Blasting Spare Parts: blade, impeller, distributor, guard plate, etc
Shot Blasting Machine Use: metal rust removing
Trademark: Macblast
Specification: Sa 2.5
HS Code: 8424300000

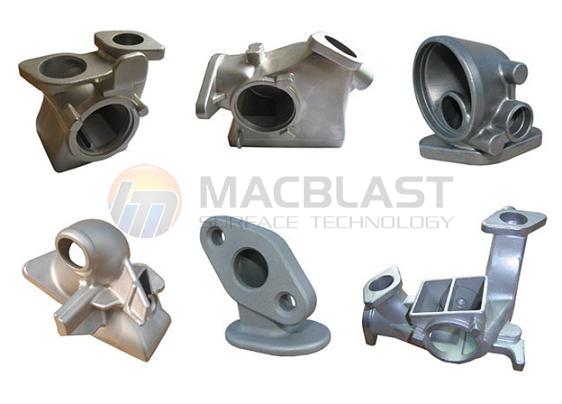

Application: Small Castings, Forgings, Weldments, etc
Type: Crawler Abrator
Automation: Automatic
Feature: Rust / Corrosion Proof
Customized: Yes
Cleaning Process: steel shot and other abrasive
Shot Blasting Loading: in container
Wear Parts Material: high chrome, spmn13, zgmn13, etc
Transport Package: stretched film or nylon
Origin: Dongguan, Guangdong,China

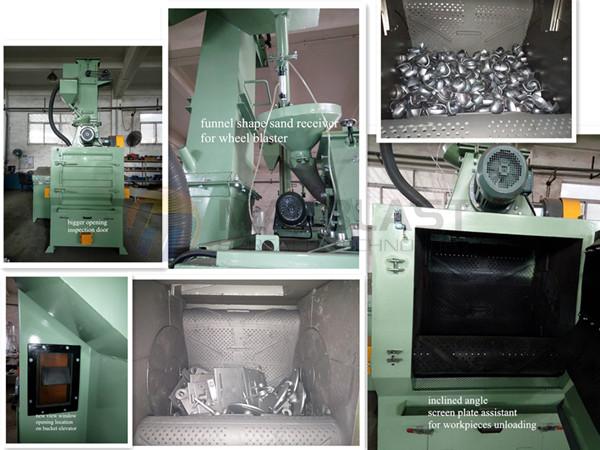

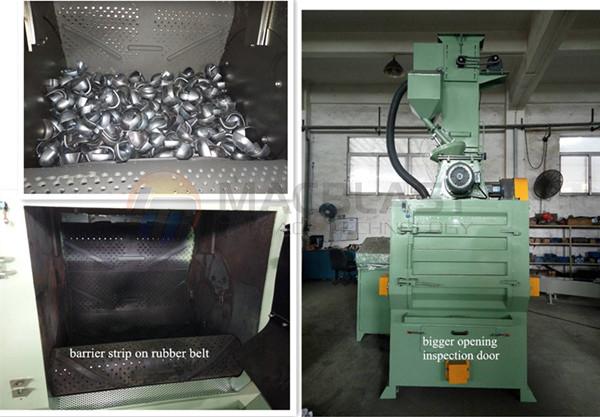

Tumble rubber belt automatic shot blasting machine for batch of small parts cleaning:
Supply Professional Customization Design Service. Can design most suitable machine according to your details requirement and workpiece!

Shot blasting machine is a cleaning effect , compact structure, low noise, complete and good cleaning equipment, has the following characteristics:

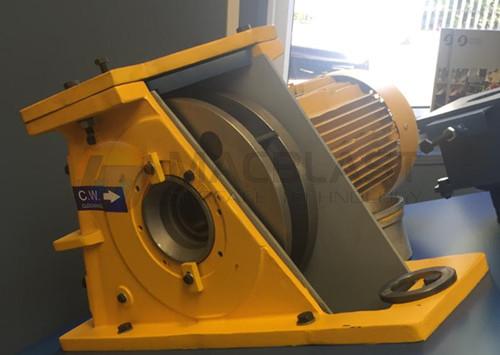

1. The machine uses cantilever centrifugal blast wheel, has a long life, simple structure.
2. By full curtain winnowing abrasive mixture separator, with good separation effects and higher productivity, has a positive effect to improve the life of the blasting blade.
3. Use wear-resistant rubber track, decreasing workpiece collision damage phenomenon and then reduce the noise of the machine.
4. Use pulse dust collector, dust can be collected in the dust hopper or exclude to outdoors, improve the labor environment.

Features:
-Compact design, easy operation
-Forced but gentle turning and tumbling of the parts for all-round shot impingement
-Targeted high performance shot blasting for specific applications
-Continuous and thorough shot removal
-The tumbling action of the belt conveyor ensures that components are continually exposed to the blast stream and completely cleaned. For easy unloading, the belt conveyor is reversed, delivering the finished components into the loading skip or stillage.

Optimized shot blast effect:

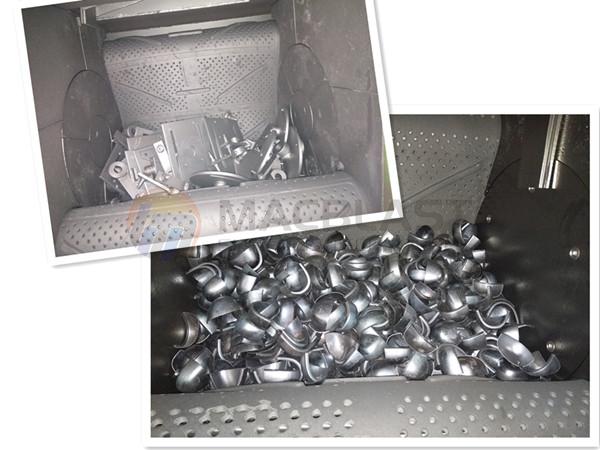

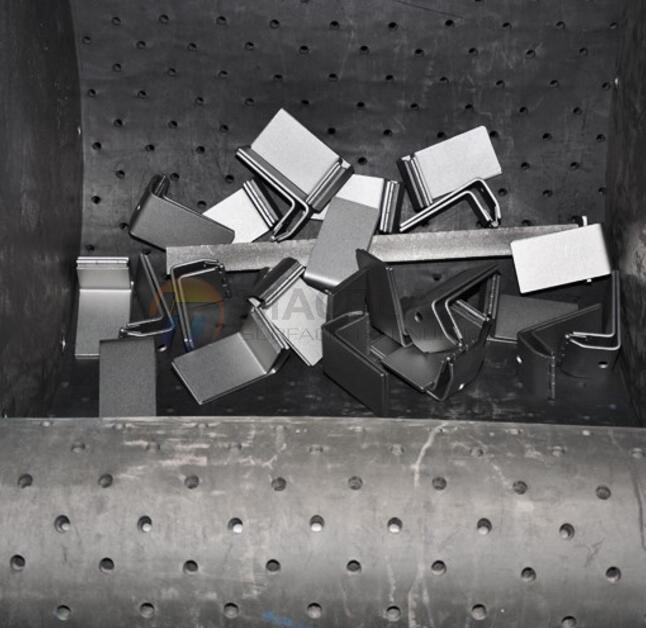

During shot blasting, the workpieces, regardless of size and shape, are uniformly and continuously tumbled. This is necessary for the effective and uniform treatment of all surfaces.
During tumbling, the workpieces continually undergo shot removal, enabling workpiece interiors and cavities to be perfectly cleaned
For the complete removal of all shot, the final tumbling time that follows the shot blast sequence can be regulated to suit the type of workpieces being blast cleaned
The tightly sealed, leak-proof blast chamber minimizes shot consumption.
