Shot blasting machine

double hooks type airless shot blasting machine(Q3710)

double hooks
airless shot blasting
wheel blasting
wheel turbo
Product description:
INQUIRY

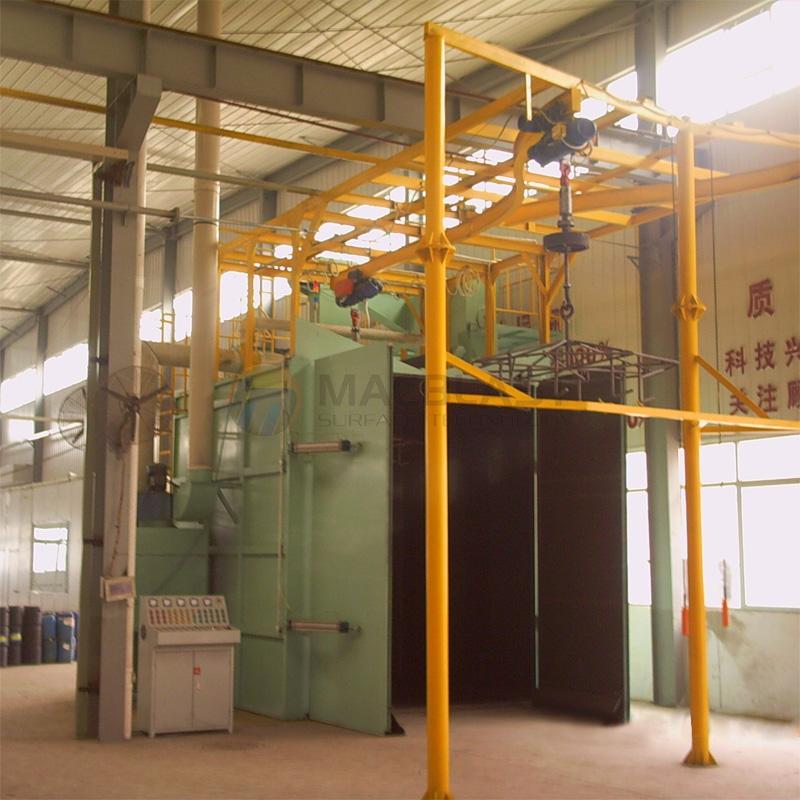

Q37 hook type shot blasting machine is used for surface cleaning and strengthening of steel structural part, castings, aluminum alloy parts and other spare parts. The machine is consists of shot blasting chamber, elevator, separator, screw conveyor, shot blasting wheel, abrasive control system, hook system, autorotation device, foundation, dust removal system and electrical control system, etc.

Application description:
Ferrous and non-ferrous castings
Heat treated forgings
Many kinds of castings
Die castings and much more
Lower value parts where part on part impingement is not an issue
When production requires dictate batch processing
Small to medium size castings, fabrications and heat-treated parts

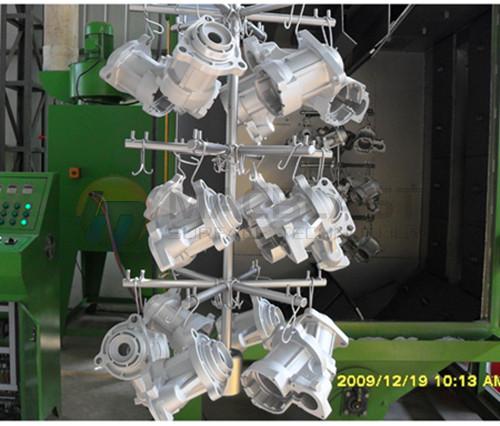

It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing

item	Unit	Q376	Q378	Q3710	3720	Q3730
Maximum weight of cleaning	Kg	500	800	1000	2000	3000
Abrasive flow rate	Kg/min	2*200	2*250	2*250	3*250	3*250
Ventilation capacity	m3/h	5000	5000	5000	9000	11000
Lifting amount of elevating conveyor	T/H	24	30	30	45	45
Separating amount of separator	T/H	24	30	30	45	45
Max overall dimensions of suspender	mm	Ø600 *1200	Ø1000 *1600	Ø1200 *1800	Ø1400 *2200	Ø1600 *2300

This machine has the following features:
Shot blasting chamber body and blast wheel's layout are determined by computer's three-dimensional dynamic blasting simulation.
Adopts the world leading technology produced Q034 blast wheels, can improve enhanced efficiency greatly to get satisfaction strengthening effect, the bearings are imported from NSK, special structure, so the utilization of abrasive can be increased 15% than the old-style, increase 60% wear life than old-style, reduced 50% maintenance costs.
Separator: adopts the most advanced BE full shutter type & separator in the world, can increase separating effect greatly.
Adopts cartridge type dust collector, bigger filter area better filter effect.
Novel design ideas, easy maintenance.
This machine has automatic fault detection device, adopts advanced Switzerland GF technology, so the machine has advanced structure, reasonable design, reliable operation, high production efficiency.
Can decide the quantity of working blast wheel according to different workpieces size.

Our service:

1	Reply your inquiry in 12 working hours.
2	Experienced staffs answer all your questions in time.
3	Customized design is available.
4	Exclusive and unique solution can be provided to our customer by our professional engineers and staff.
5	Special discount and protection of sales are provided to our distributor.
6	We are professional manufacturer of shot blasting Machine. Have a professional design team with more than 10 years design experience engineers, competitive with good quality
7	As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
8	Prompt delivery, site installation and commissioning.
