customized solutions compact suction manual sandblasting cabinet with manual trolley and turntable(9080F-AG)

Product technical specifications:
Our MACBLAST series dryblast cabinets are constructed of high quality steel plate and materials, which can deliver efficient, affordable media blasting to clean, deburr, or finish parts. mac-1212 is available in suction and pressure blast models, and accepts customers' popular options like turntable and tracks for heavy parts, vertical doors to speed loading, and other options plus modifications.
Also available with optional reverse pulse dust collector.

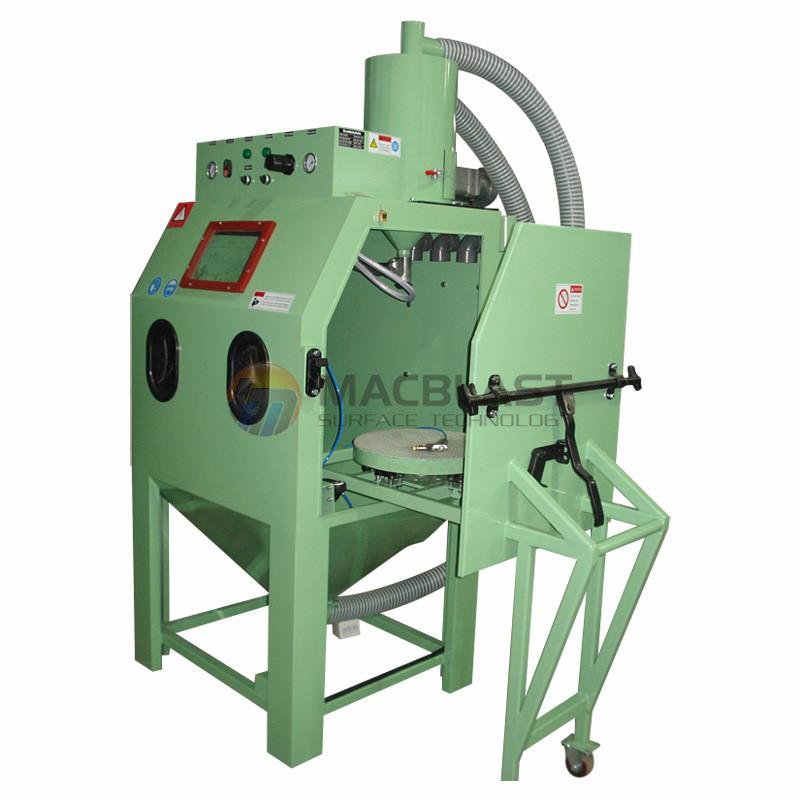

-compact type manual sandblasting cabinet with trolley and turntable
-model: 9080F-AG
-overall dimension: 900*800*1850mm
-dimension of work cabinet: 900*800*650mm

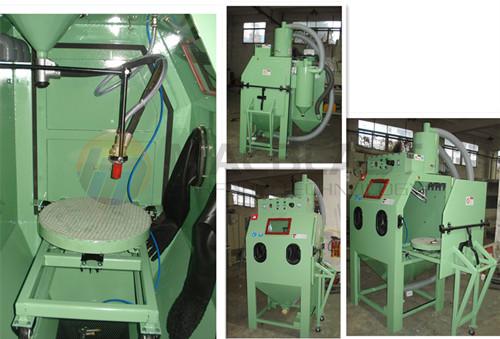

-manual trolley and manual turntable,compact sturcture for minimum floor space occupation;optional fixed turntable(model:9080A-G, see below picture)
-diameter of turntable: 500mm
-one piece of mac-B type sandblasting gun, with 8*20*60mm boron carbide nozzle
-one piece of air blower cleaning gun
-mac-A type cyclone separator
-suitable for aluminum oxide, glass beads and other abrasive media, mesh#46~#150
-bags type dust collector, optional cartridge filter type
-fan motor: 220, 50hz,370w
-compressed air supply: prssure 2~7 bar, air flows 0.8~1.2 cubic meter per minute

Main features:
1.newly compact and ergonomic design ensures saving of space and usage, simply connect to your air and electric supply, very easy for operation
2.superior quality construction combined with outstanding reliability guarangtees years of satisfaction
3.good process efficiency and low energy consumption
4.cyclone separator for abrasive media recovery and detach useful media from dust and reduce media consumption
5.conveniently angled large window and illumination allows very good visibility
6.quality electrrical components and parts for a long work life
7.offer many options to meet customers' requirements, like cartridge filter, motorized rotating basket, safeswitch,trolley&turntable, boron carbide nozzle or tungstne steel nozzle, aluminum alloy gun holder/gun set,etc
Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc
