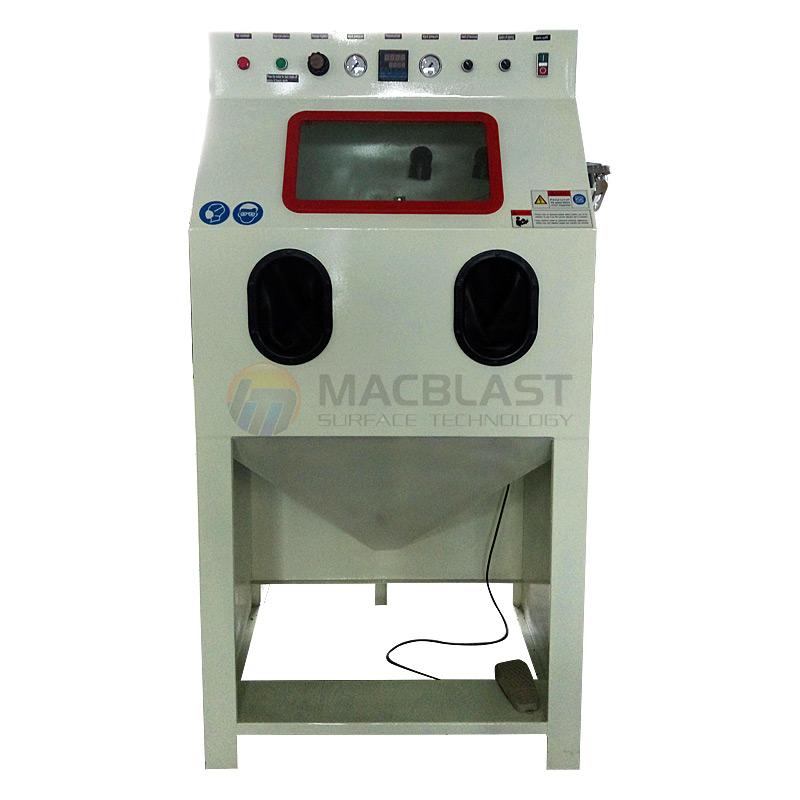

standard suction type common use manual sandblasting cabinet(9080A)

Product technical specifications:

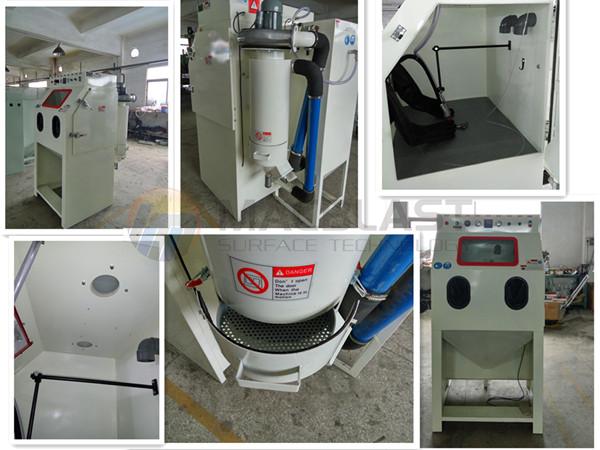

Our MACBLAST series dry-blast cabinets are constructed of high quality steel plate and materials, it is all-in-one concept integrating the blasting chamber,dust collector and cyclone separator into 1 compact cabinet body. Fully equipped to handle most common recyclable blast medias,now become our standard manual dry sandblasting cabinets series.
We also offer other options to meet our customers requirement like cartridge filter, motorized rotating basket, boron carbide nozzle, gun holder, safety switch, etc.

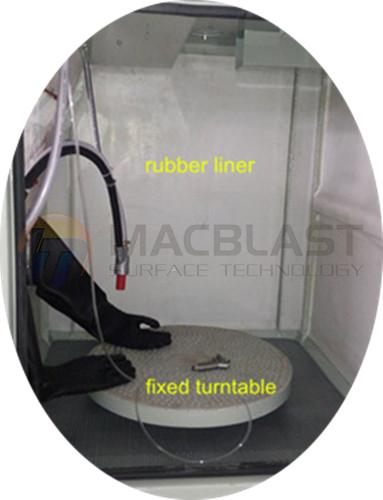

model: 9080A,suction type sandblasting(model 9080A-G if with fixed turntable inside cabinet for heavy- duty products, see below picture)
overall dimension: 900*800*1750mm
dimension of work cabinet: 900*800*650mm

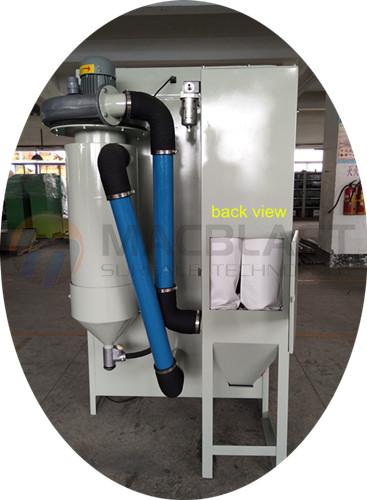

mac-A type cyclone separator,diameter of which is 350mm
one piece of mac-B type sandblasting gun, with 8*20*60mm boron carbide nozzle
one piece of air blower cleaning gun
suitable for aluminum oxide, glass beads and other abrasive media, mesh#60~#150
bags type dust collector, optional cartridge filter style
blower motor: 220, 50hz,370w(or customers specify)
compressed air supply: pressure 2~7 bar, air flows 0.8~1.2 cubic meter per minute

Main features:
1.newly design and easy operation, economical system for general blasting
2.good process efficiency
3.compact & ergonomic design to save space.Imply connect to your air and electrical supply
4.Superior quality construction combined with outstanding reliability guarantees years of satisfaction
5.cyclone separator for abrasive media recovery and detach useful media from dust and reduce media consumption
6.quality electrical components and parts for a long life use
7.conveniently angled large window and illumination allows high visibility

Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation

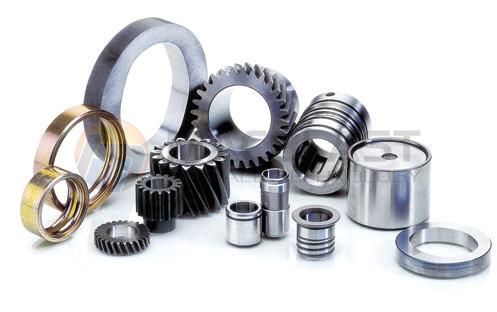

3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc

Standard dry sandblasting series:
