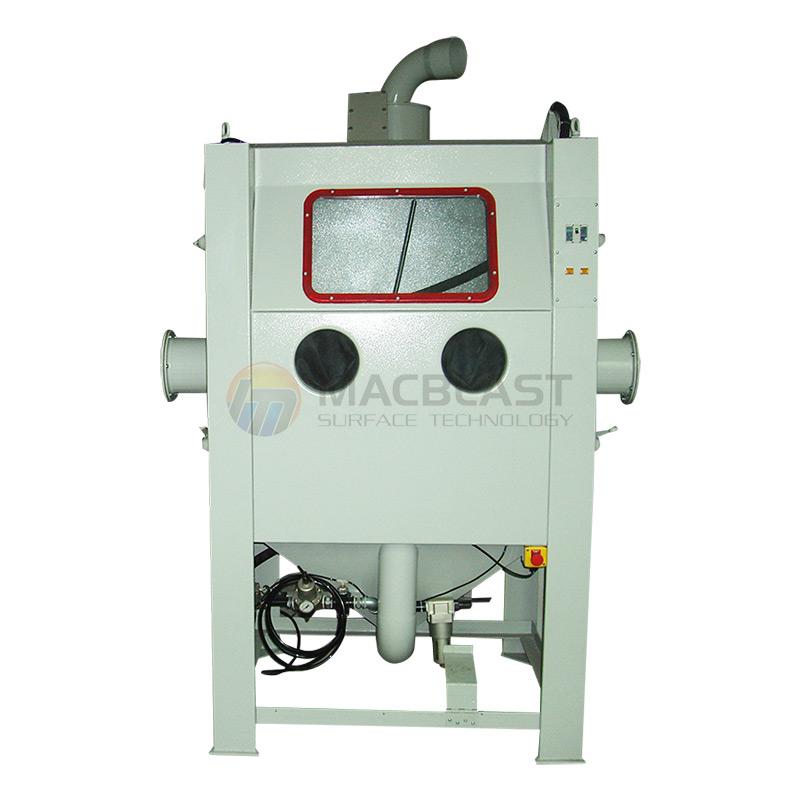

Manual sandblast cabinet

customized solutions multifunctions manual sandblast cabinet with fixed turntable and couple opening holes on both side doors for long parts(1212A-G-M)

manual blast
port hole
fixed turntable
long products
Product description:
INQUIRY

Our MACBLAST series dryblast cabinets are constructed of high quality steel plate and materials, which can deliver efficient, affordable media blasting to clean, deburr, or finish parts. mac-1212 is available in suction and pressure blast models, and accepts customers' popular options like turntable and tracks for heavy parts, vertical doors to speed loading, and other options plus modifications.

Also available with optional reverse pulse dust collector.

For tough cleaning job, pressure type blasting works higher abrasive velocity for greater impact intensity,compared to suction blasting, and can increase your production rate by as much as 300%.

model: 1212A-G-M(modification version on basis of 1212A-G)
-suction style sandblasting
-8"(200mm) diameter, 8"(200mm) long port hole on both side doors with removable cap if long products need sandblasting
-overall dimension: 1200X1200*2050mm
-dimension of work chamber: 12000*1200*750mm
-mac-A type cyclone separator reclaimer,diameter of which 350mm

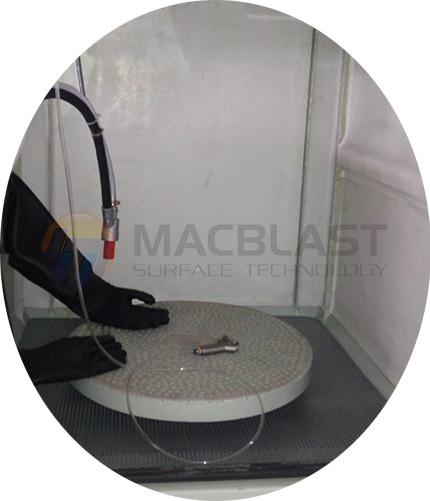

-manual fixed turntable, diameter 800mm; optional motorized turntable
-safety door interlocks switch mounted on door
-moisture filter mounted at rear of machine
-ceiling mounted LED light fixture with abrasive resistant protection cover for extraordinary visibility
-one piece of mac-B type manual sandblasting gun, with 8*20*60mm boron carbide nozzle;one piece of air blow-off cleaning gun
-suction type sandblasting, optional pressure style
-suitable for aluminum oxide, glass beads and other abrasive media, mesh#14~#120 or #120~#220 or above(Note: not include steel grit and steel shot)
-bags type dust collector, optional cartridge filter style with auto reverse pulse
-fan motor: 380, 50hz, 3phase, 2.2kw(or customers specify)
-compressed air supply: pressure 2~7 bar, air flows 0.8~1.2 cubic meter per minute

Cabinet model	Mac Dry 9060A	Mac Dry 9080A	Mac Dry 1010A	Mac Dry 1212A
Cabinet dimension(mm)	1150x600x1850	1150x800x1950	1250x1000x1950	1380x1200x2050
Dust collector	lntegrated	lntegrated	lntegrated	lntegrated
Cyclone separator	Integrated/without	Integrated	lntegrated	lntegrated
Working chamber(mm)	900x600x580	900x800x650	1000x1000x850	1200x1200x950
Door (W)x(H)mm	550X580	550X690	680X750	780X780
Electrical	220v/50Hz/1phase	220v/50Hz/1phase	220v/50Hz/1phase	220v/50Hz/1phase
Blast gun nozzle	Boron carbide	Boron carbide	Boron carbide	Boron carbide
Dust bag/Filter cartridge(quantity:pc)	9/1Cartridge	9/1Calnidge	16/1Catridge	16/1Catridge
Blower motor	370w	370w	750w	1100w
Air requirement	0.5-1.2m3/min	0.5-12m3/min	0.5-1.2m3/min	0.5-1.2m3/min
Sandblasting gun	1pc	1pc	1pc	1pc
Air blow gun	1pc	1pc	1pc	1pc
Standard color of body	greywhite	greywhite	greywhite	greywhite

Feature of this series of suction type sandblasting machine

1	Improve the corrosion resisting ability of machinery products and metal materials.
2	Improve bonding strength of steel surfaces and coatings.
3	Increase the anti-fatigue capability of metal products and extend its life.
4	Optimize the craftwork state of steel surface.
5	Greatly enhance the efficiency of cleaning.
6	Reduce the labor intensity of cleaning works.
7	Reduce the environment pollution.

Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB, CIP, CFR, CIF, DDU, DDP.
Payment term: 30% deposit by T/T, the balance paid before delivery by T/T, or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
After-sale service:
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet. Customer need to prepare various installation machinery and tools.
2. Warranty time:12 months from date of commissioning completion..
3. Supply full English documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.

FAQ:

1	Q: How many days to produce this machine?
	A: Some standard machines in stock, can be delivered right away after your deposit. Customized specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 30 to 50 days.
2	Q: What does your factory do regarding quality control?
	A: We pay much attention to quality control from the very beginning to the end. Each machine is assembled and carefully tested before shipment.
3	Q: What's your machine quality guarantee?
	A: Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.
4	Q: Could you give installation and commissioning overseas? How long will it take?
	A: Yes, we supply overseas service, customers shall pay for the engineers flight tickets andlocal transport, hotel, food. Small machines usually takes 5 days, while big machines usually takes about 20 days even one or two months.
5	Q: How can I trust you to deliver the right machine as I ordered?
	A: We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. We have never got complaint from our customers.
