standard pressure manual sandblast cabinet with bottom pressure pot

Product technical specifications:

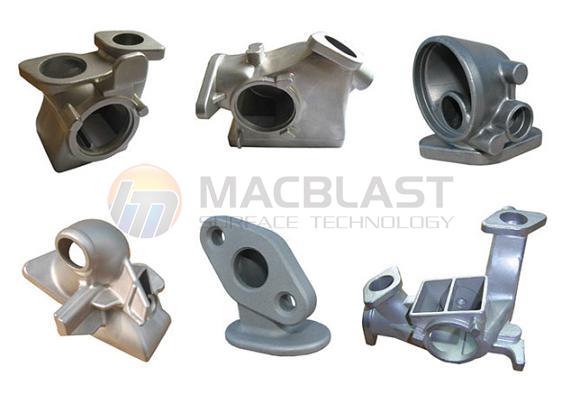

Compared to suction sandblasting, our MACBLAST pressure blasting cabinet is engineered for tough cleaning job,delivers higher abarasive velocity for greater intensity, can increase your production rate much more efficiently. Widely used for rust remove, mill scale, carbon buildup and heat scale from metals, moreover, common applications also include: 1.eliminate burrs, parting lines,finishings, and other defects from castings and injection-moulded parts; 2.powder coating, plating,strip paint, and anodizing from parts for rework; 3.extract residual sands and muds from castings; 4.etch artwork and lettering into glass, stone, plastics, metal and other materials; 5.beautify steel, stainless steel, aluminum, brass and other materials with uniform matte finish.
We also offer other options to meet our customers requirement like cartridge filter, motorized rotating basket, boron carbide nozzle, gun holder, safety switch, etc.

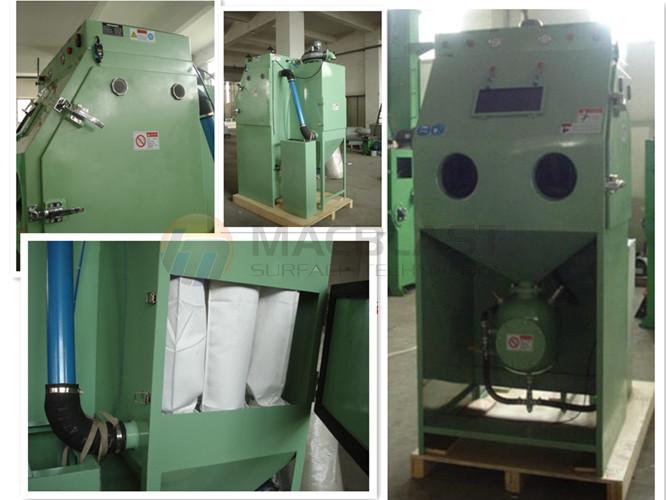

-model: 9080P-B, it can be engineered to be all-in-one concept integrating the blast chamber, dust collector into one compact cabinet body,see below cabinet picture in apple green.
-pressure vessel(pressure pot) mounted at the bottom of cabinet and media storage hopper, cater to most of abrasive media including steel grit and steel shot,etc
-overall dimension: 900*800*2050mm
-dimension of work cabinet: 900*800*650mm; optional fixed turntable inside chamber(see below pictures)
-one piece of mac-P pressure sandblast gun, with 8*20*35mm boron carbide nozzle
-one piece of air blower cleaning gun
-safety interlocks interrupt blasting if either door is opened
-heavy-duty,auto seal strip doors tight through several years of service
-ceiling mounted LED light fixture with abrasive resistant protection cover for extraordinary visibility
-full-length, durable rubber gloves resist well and protect operator
-suitable for nearly all the media, like aluminum oxide, glass beads and steel grit, steel shot,etc
-bags type dust collector, optional cartridge filter type with manual reverse pulse
-blower motor: 220, 50hz,370w(or customers specify)
-compressed air supply: prssure 2~7 bar, air flows 1.8~2.2 cubic meter per minute

Main features:
1.newly design and easy operation, economical system for general blasting
2.tilt-out window, for tool-free glass changes in minute
3.pressure regulator, meter gauge, and electric switch mounted within easy reach
4.built-in blow-off gun helps keep dust inside the cabinet, not on your floor
5.bolt-on sump pipes allow easy replacement for maintenance
6.compact & ergonomic design to save space.Imply connect to your air and electrical supply
7.Superior quality construction combined with outstanding reliability guarantees years of satisfaction
8.cyclone separator for abrasive media recovery and detach useful media from dust and reduce media consumption
9.quality electrical components and parts for a long life use
10.conveniently angled large window and illumination allows high visibility

Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc
