Manual sandblast cabinet

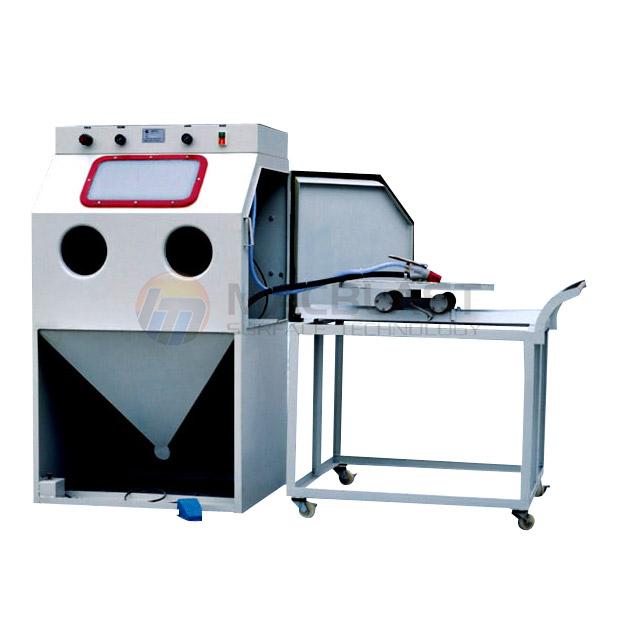

manual dry sandblasting cabinet for small mould(Model:9080F-A)

manual trolley
manual turntable
manual sandblasting
small mould sandblasting
Product description: Product description: product descriptions:energy saving lamp 220v, 13w,2pcs, with manual trolley and turntable; max load of turntable:50kgs; cyclone separator;bags type or cartridge filter type dust c
INQUIRY

Product technical specifications:

Our MACBLAST series dry-blast cabinets are constructed of high quality steel plate and materials, it is all-in-one concept integrating the blasting chamber,dust collector and cyclone separator into 1 compact cabinet body. Fully equipped to handle most common recyclable blast medias,now become our standard manual dry sandblasting cabinets series.
model: 9080F-A
overall dimension: 900*800*1750mm
dimension of work cabinet: 900*800*650mm
mac-A type cyclone separator,diameter of which 350mm
manual trolley with truckle for turntable and tracks, optional fixed turntable inside cabinet(model:9080A-G, see below picture)
one piece of mac-B type sandblasting gun, with 8*20*60mm boron carbide nozzle
one piece of manual air blow-off cleaning gun
suitable for aluminum oxide, glass beads and other abrasive media, mesh#36~#120
bags type dust collector, optional cartridge filter type with reverse pulse valve
blower motor: 220, 50hz,370w, and customized blower motor if required different abrasive medias
compressed air supply: pressure 2~7 bar, air flows 0.8~1.2 cubic meter per minute

Main features:
1.newly design and easy operation
2.good process efficiency and low energy consumption
3.cyclone separator for abrasive media recovery and detach useful media from dust and reduce media consumption
4.quality electrical components and parts for a long work life

Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc

Standard dry sandblasting series:

Cabinet model	Mac Dry 9060A	Mac Dry 9080A	Mac Dry 1010A	Mac Dry 1212A
Cabinet dimension(mm)	1150x600x1850	1150x800x1950	1250x1000x1950	1380x1200x2050
Dust collector	lntegrated	lntegrated	lntegrated	lntegrated
Cyclone separator	Integrated/without	Integrated	lntegrated	lntegrated
Working chamber(mm)	900x600x580	900x800x650	1000x1000x850	1200x1200x950
Door (W)x(H)mm	550X580	550X690	680X750	780X780
Electrical	220v/50Hz/1phase	220v/50Hz/1phase	220v/50Hz/1phase	220v/50Hz/1phase
Blast gun nozzle	Boron carbide	Boron carbide	Boron carbide	Boron carbide
Dust bag/Filter cartridge(quantity: pc)	9/1Cartridge	9/1Calnidge	16/1Catridge	16/1Catridge
Blower motor	370w	370w	750w	1100w
Air requirement	0.5-1.2m3/min	0.5-12m3/min	0.5-1.2m3/min	0.5-1.2m3/min
Sandblasting gun	1pc	1pc	1pc	1pc
Air blow-off gun	1pc	1pc	1pc	1pc
Standard color of body	greywhite	greywhite	greywhite	greywhite
