customized solutions manual suction sandblast cabinet for plastic/PP/PC/PE/ABS/PVC parts (mac-1085A)

Product technical specifications:

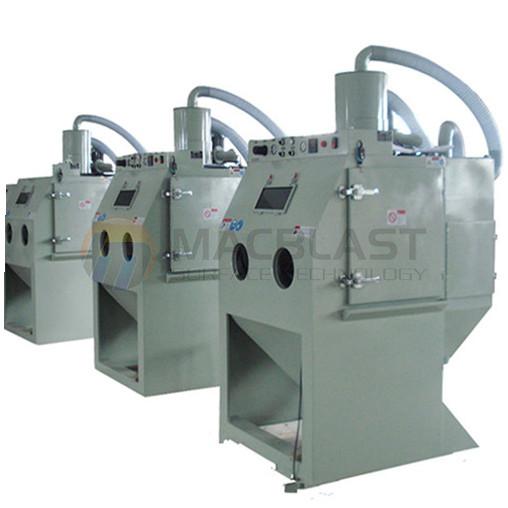

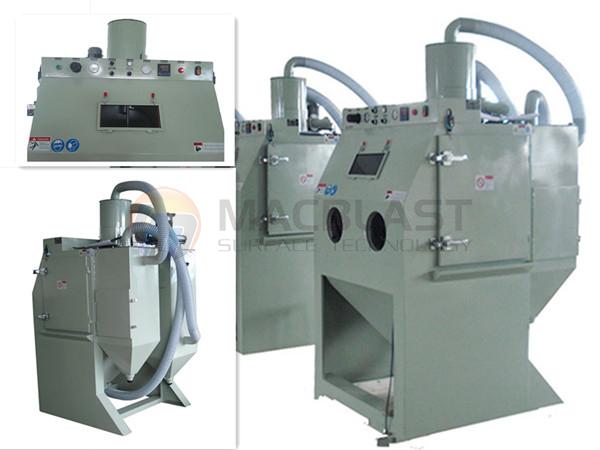

Our MACBLAST series dryblast cabinets are consturcted of high quality steel plate and materials, it includes blasting chamber,dust collector and cyclone separator. Fully equipped to handle most common recyclable blast medias,all-welded construction and safety-glass view window, now they become our standard manual dry sandblasting cabinets series.

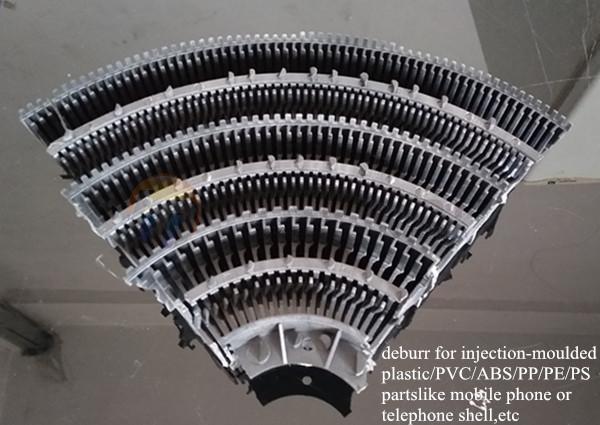

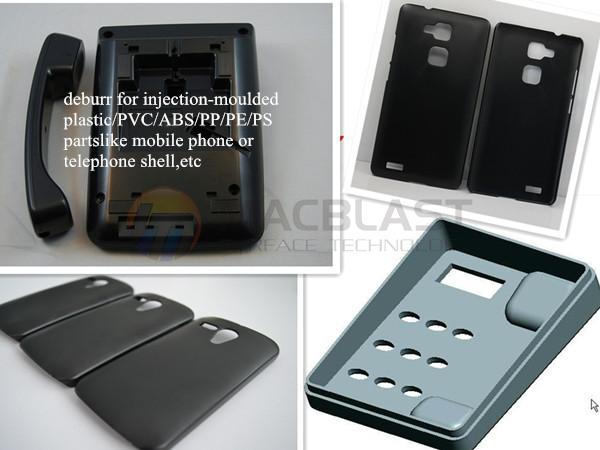

-model: 1085A, suction type sandblasting (specially designed and developed to sandblast(deburr) for plastic/ABS/PP/PC/PE/PVC parts,and metal products are also suitable,etc),model 1085A-G if with fixed turntable inside cabinet.
-overall dimension: 1250*1000*1950mm
-dimension of work cabinet: 1000*850*750mm
-two steps style cyclone separator reclaimer for special abrasive medias like zirconia, nylon grit and plastic grit,etc
-one piece of mac-B type sandblasting gun, with 8*20*60mm boron carbide nozzle
-one piece of air blow-off cleaning gun
-suitable for aluminum oxide, glass beads and other abrasive media, mesh#36~#180
-bags type dust collector, optional cartridge filter type with reverse pulse system
-fan motor for standard series: 220v, 50hz, single phase, 370w(optional 550w, 750w,1.1kw and 380v,50hz,3phase,1.5kw, etc for different kinds of abrasive media)
-compressed air supply: prssure 2~7 bar, air flows 0.8~1.2 cubic meter per minute

Main features:
1.newly design and easy operation,simply connect to your air and electricity supply
2.good process efficiency and low energy consumption
3.cyclone separator for abrasive media recovery and detach useful media from dust and reduce media consumption
4.quality electric components and parts for a long life use.
5.superior quality construction combined with outstanding reliability
6.convenient angled large window and illumination allows high visibility inside cabinet

Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc

Standard dry sandblasting series:
