Shot blasting machine

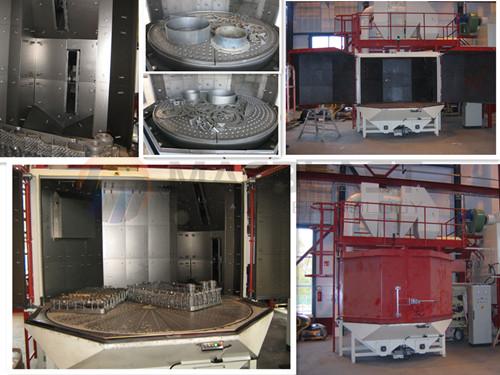

customized solutions turntable automatic shot blasting machine

turntable
workcar
track
casting iron
Product description:
INQUIRY

Features and benefits:
*Machine body is made of steel plate and channel steel

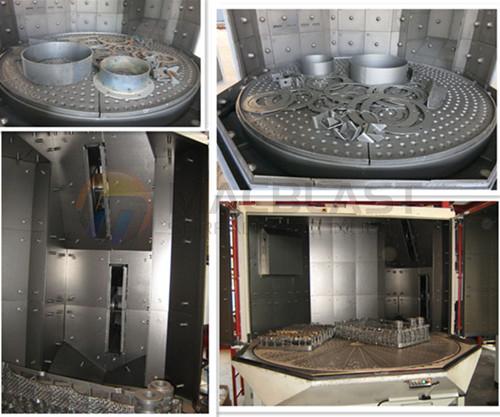

*Diameter of turntable: Ф1800mm
*Optional workcar & track with heavy-duty support
for turntable’s going in&out
*Inverter for turntable’s rotate speed

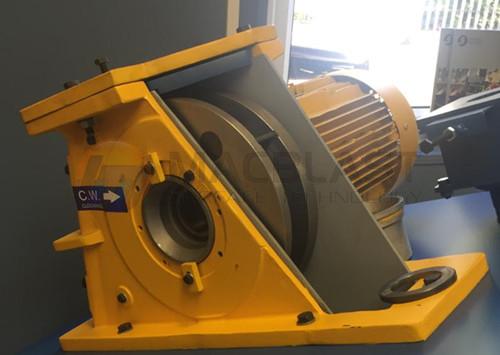

*Power of shot blasting wheel(ED350): 380v, 50hz, 7.5kw
*Quantity of shot blasting wheel: 7.5kwX2pcs
*Shot blasting capacity: 160X2pcs(kgs/min)
*The time of cleaning one hook: 10~15min
*Lifting capacity of bucket elevator: 20t/h
*Separation capacity of separator: 20t/h
*Cartridge filter type dust collector
*Ventilation volume: 8300 cubic meter per minute
*Protection plate(Mn & Cr steel plate) on inner wall of cabinet
*Color of machine: grey white
*Compressed air needed: 2-7 bar, air flows 0.1~0.5 cubic meter per minute.
*Electrical source: 380v, 50hz,3phase

S/N	Item	Index
1	workpieces	steel products
2	maximum load capacity of turntable	5600KGS
3	process mode	turntable rotates
4	processing efficiency	6~12 Tons/Hour
5	surface cleanliness	BSA2.5
6	roughness	Ra30~75um
7	abrasive media to be used	steel ball/steel grit
8	noise level	≤93dB（A）
9	dust discharge concentration	<100mg/m3
10	environment relative humidity	≤96%
11	environment temperature	-15~45 ℃
12	working time	8hours/day
13	consumption of compressed air	0.1~0.3m3/min
14	first feeding of abrasive media	0.8 Tons
15	colour of machine	grey white
16	total power of equipmen	about 32.7kw

1	maximum work diameter	1650mm
2	work height	1850mm
3	load height	900mm
4	overall length	2560mm
5	overall depth	2350mm
6	overall height	4950mm
7	maximum load capacity	5600kgs
8	wheel diameter and drive	ED350,2X11kw
9	abrasive flow/hour	18tons/h
10	dust collector volume	1800m3/h
11	standard electricals(machine wired)	440~460/3/60
12	shipping weight	6.5 tons
13	first abrasive loading	0.8~1.0 tons
14	abrasive velocity	72meter per second

Price list:

S/N	Name of item	Quantity	Unit price	Remarks
1	Turntable automatic shot blasting machine Mac-1800	1PC
2	Blade, 8pcs/set	1Set	USD88.00	Spare parts
3	Deflector	1PC	USD48.00	Spare parts
4	Disc	1PC	USD538.00	Spare parts
5	Impeller	1PC	USD59.00	Spare parts
6	Protection plate 40*40	1PC	USD55.00	Spare parts
7	Belt for bucket elevator	1PC	USD950.00	Spare parts
8	Hopper screw at bottom of machine	1PC	USD690.00	Spare parts
9	Filter bags	1PC	USD35.50	Spare parts
