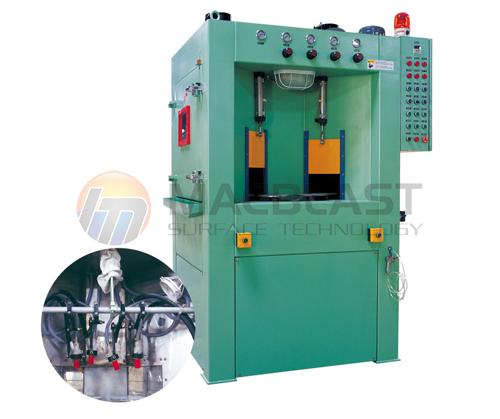

customized solution PLC turntable type automatic wet sandblasting machine(mac-1212w-4)

Product technical specifications:

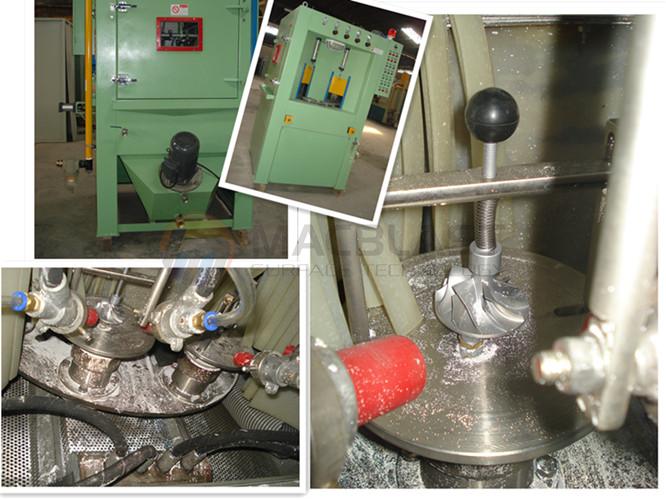

This PLC indexing turntable type automatic wet sandblasting machine is designed and developed for complex structures like turbo impellers or car rims,etc.it is a versatile, can switch quickly from cleaing one part to another, changing fixtures and repositioning blast guns just takes a few minutes, our ma-1212w-4 come figured for either 2-station or single station indexing. two-station indexing puts 2 parts in each of blast, blow-off and load positions.Single station indexing allows multi-step blasting, like inside, outside, top and bottom.
Our exclusive submersible pumps is specially engineered to have the functions to sufficiently agitate medias and water therby to allow a uniform mix slurry and distribute to the blast gun.
-model: mac-1212w-4
-overall dimension: 13500*1450*2280mm
-dimension of work cabinet: 1200*1200*650mm
-indexing turntable, rotating satellites, automatic water cleaning
-fingertip process controls for timer and parts rotation
-8pcs low profile rotating satellites and generous 20*30mm cylinder door opening accommodate a wide array of small to mid-size of products
-each rotating satellites can support up to 5kgs, including the products being blasted and the fixture to hold it in place
-adjustable mounts allow the automatic blast guns to be set at the appropriate angle and distance from the products being blasted
-PLC control for turntable,satellites and blasting guns
-4 pieces of mac-B suction sandblasting gun, with 8*20*60mm boron carbide nozzle
-pressure regulator and meter for each blast gun, features an extended blasting pressure range of 2bar to 6bar
-guns are mounted on oscillation devices, optional up&down move mechanism devices
-ceiling mounted LED lighting for high visibility inside chamber
-bottom water storage tank: 30kgs capacity
-fan blower to extract water fogs inside cabinet
-motor for pump: 380v, 50Hz,4.0kw,3phases 5wires type
-compressed air supply: pressure 2~7 bar, air flows 3.5~4.2 cubic meter per minute
-suitable for aluminum oxide, glass beads and other abrasive media, mesh#36~#220

Main features of our sandblasting series:
1.newly compact and ergonomic design ensures saving of space and usage, simply connect to your air and electric supply, very easy for operation
2.superior quality construction combined with outstanding reliability guarantees years of satisfaction
3.good process efficiency and low energy consumption
4.conveniently angled large window and illumination allows very good visibility
5.quality electrical components and parts for a long life use
6.offer many options to meet customers' requirements, like motorized rotating basket or barrel, safety interlock witch,trolley&turntable, boron carbide nozzle or tungsten steel nozzle, aluminum alloy gun holder/gun set,etc
Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc.
