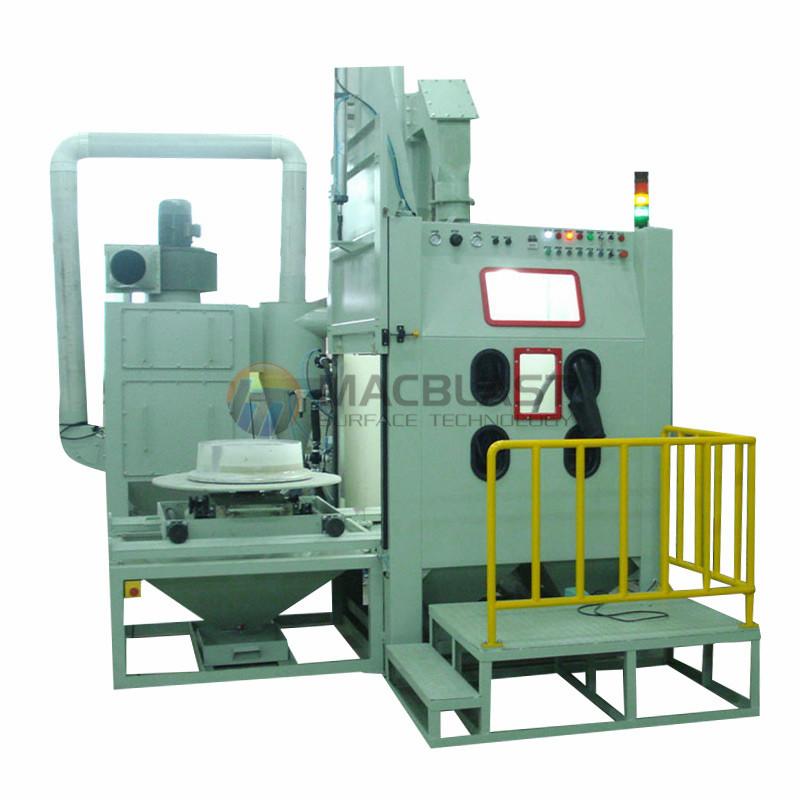

customized solutions manual pressure sandblast cabinet with manual workcar and turntable for detection of aeroplane hub(1515P-F)

Product technical specifications:
Compared to suction sandblasting, our MACBLAST pressure blasting cabinet is engineered for tough cleaning job,delivers higher abrasive velocity for greater intensity, can increase your production rate much more efficiently. Widely used for rust remove, mill scale, carbon buildup and heat scale from metals, moreover, common applications also include: 1.eliminate burrs, parting lines,finishings, and other defects from castings and injection-moulded parts; 2.powder coating, plating,strip paint, and anodizing from parts for rework; 3.extract residual sands and muds from castings; 4.etch artwork and lettering into glass, stone, plastics, metal and other materials; 5.beautify steel, stainless steel, aluminum, brass and other materials with uniform matte finish.
We also offer other options to meet our customers requirement like cartridge filter, motorized rotating basket, boron carbide nozzle, gun holder, safety switch, etc.

-model: 1515P-F
-overall dimension: 1500*2500*2650mm
-dimension of work cabinet: 1500*1500*850mm

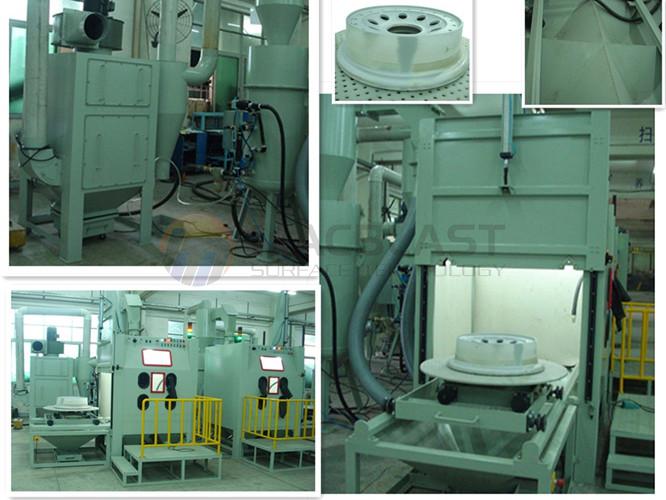

-workcar and tracks and turntable design specially for aeroplane hub detection, manual sandblasting to eliminate surface paint to find out  if there is crack on the hub
-use plastic git as abrasive media to protect the hub during sandblasting
-the exclusive cyclone media reclaimer continuously extract dust and debris and return properly sized, usable media to blast system
-cyclone media separator reclaimer is mounted at top of pressure vessel/pot and ready to refill the blast system with clean and recycled media
-our cyclone media reclaimer is versatile design, can quickly adapt the system to our changing need.
-one piece of mac-P pressure sandblast gun, with 8*20*35mm boron carbide nozzle
-one piece of air blower cleaning gun
-safety interlocks interrupt blasting if either door is opened
-heavy-duty,auto seal strip doors tight through several years of service
-ceiling mounted LED light fixture with abrasive resistant protection cover for extraordinary visibility
-full-length, durable rubber gloves resist well and protect operator
-also suitable for nearly all the media, like aluminum oxide, glass beads and steel grit, steel shot,etc
-bags type dust collector, optional cartridge filter type with auto reverse pulse
-optional vertical cylinder door to speed loading
-fan motor: 220, 50hz,2.2kw
-compressed air supply: pressure 2~7 bar, air flows 1.8~2.2 cubic meter per minute
Main features:
1.newly design and easy operation, economical system for general blasting
2.tilt-out window, for tool-free glass changes in minute
3.pressure regulator, meter gauge, and electric switch mounted within easy reach
4.built-in blow-off gun helps keep dust inside the cabinet, not on your floor
5.bolt-on sump pipes allow easy replacement for maintenance
6.compact & ergonomic design to save space.Imply connect to your air and electrical supply
7.superior quality construction combined with outstanding reliability guarantees years of satisfaction
8.cyclone separator for abrasive media recovery and detach useful media from dust and reduce media consumption
9.quality electrical components and parts for a long life use
10.conveniently angled large window and illumination allows high visibility
Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc
