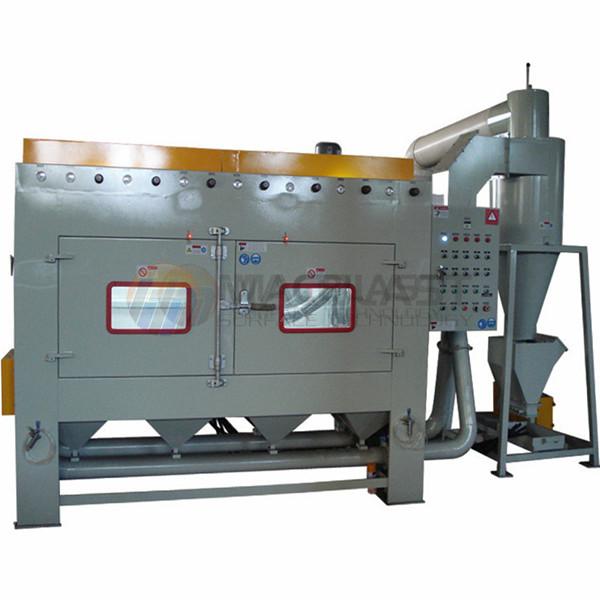

customized solutions automatic roller sandblasting machine for long tubular parts

Product technical specifications:

This PLC auto roller sandblasting cabinet machine is especially designed and developed for tubular work-piece or components like toner shaft for printing industry, to date we have built dozens of different types of such systems aimed to cater for different size and different surface profile requirements, targeted to achieve high level of productivity rate.

-model: mac-2612-7
-overall dimension: 2600*1200*2150mm
-dimension of work cabinet: 2600*1200*850mm
-PLC control to monitor speed & time

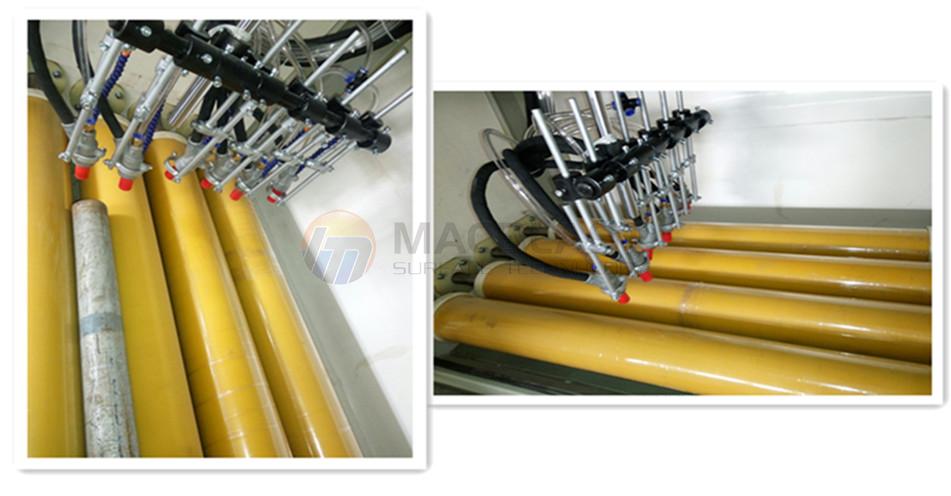

-roller's rotation guides workpieces to rotate while sandblasting
-multi-gun horizontal oscillation or move is carefully engineered to ensure uniform sandblasting
-7 pieces of mac-B type sandblasting gun, with 8*20*60mm boron carbide nozzle
-sandblasting gun is motioned and guided by linear motion modules
-high efficiency mac-E type cyclone separator for recovery of fine abrasive media
-optional heating elements at the bottom of cyclone for fine abrasive media
-automatic airwash function
-fan motor: 380v,5.5kw,3phases
-bags type dust collector, optional cartridge filter with reverse air pulse
-compressed air supply: prssure 2~7 bar, air flows 6.5~7.2 cubic meter per minute
-suitable for aluminum oxide, glass beads and other abrasive media, mesh#46~#220

Main features of our sandblasting series:
1.newly compact and ergonomic design ensures saving of space and usage, simply connect to your air and electric supply, very easy for operation
2.superior quality construction combined with outstanding reliability guarantees years of satisfaction
3.good process efficiency and low energy consumption
4.cyclone separator for recovery of abrasive media and detach useful media from dust and reduce media consumption
5.conveniently angled large window and illumination allows very good visibility
6.quality electrical components and parts for a long life use
7.offer many options to meet customers' requirements, like cartridge filter, motorized rotating basket, safes witch,trolley&turntable, boron carbide nozzle or tungsten steel nozzle, aluminum alloy gun holder/gun set,etc

Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc.
