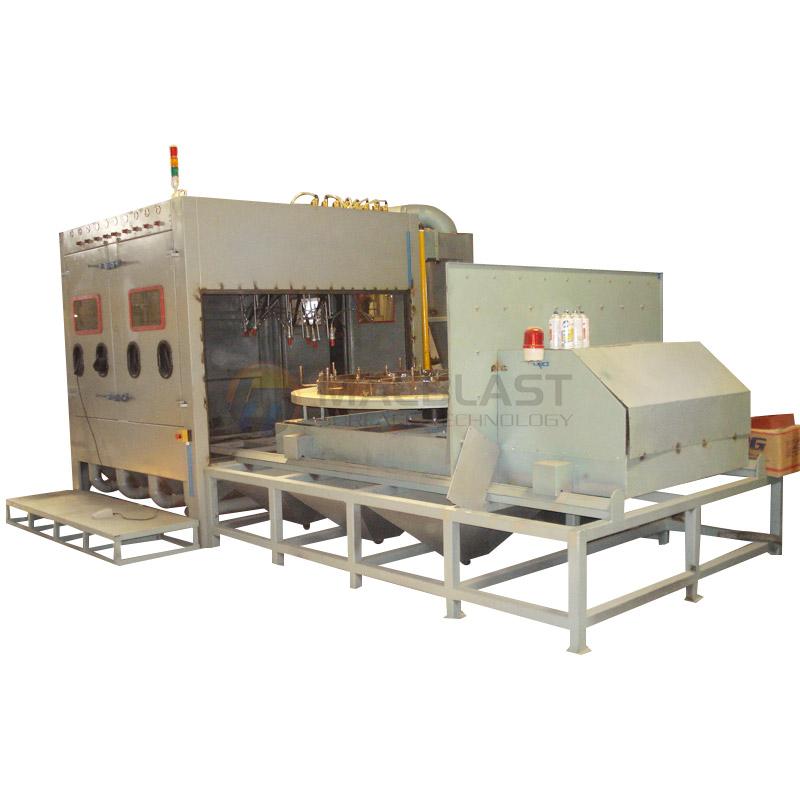

customized solutions PLC motorized workcar & turntable automatic sandblasting machine for tyre mould (mac-2222-9)

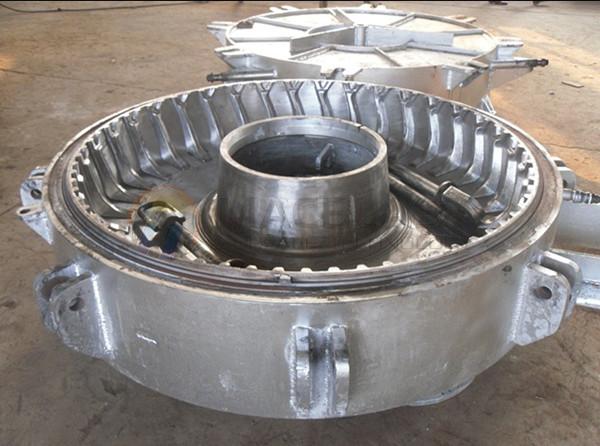

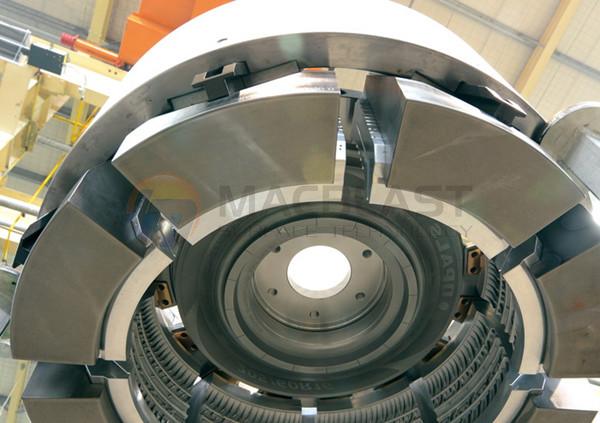

This is our PLC fully automatic or semi-automatic sandblasting machine customized to ease the operators' work, aimed to process big or heavy parts like tyre mould, automobile hubs and stonecarving,etc, and also automating the process with vertical, horizontal gun motions and rotary turntable. In addition, retractable loading workcar, quick change hose coupling systems, sound insulation panels are available.
maximum 8pcs mac B type automatic sandblasting guns, 1pc manual gun as assistant or suppliment for corner pockets sandblasting to ensure maximum coverage.The cabinet can work with most common recyclable abrasive medias.

product technical specifications:
-customized solutions PLC motorized workcar and turntable automatic sandblasting machine
-model: MAC-TC-2222-9
-overall dimension: 2250*2250*2550mm
-dimension of work cabinet: 2200*2200*1250mm
-diameter of turntable: φ1800mm
-PLC control
-total 9pcs sandblast guns,4pcs of them mounted on oscillation device,4pcs of them move up&down, 1pc manual one as suppliment
-each gun with boron carbide nozzle 8*20*60mm
-frequence converter for speed of oscillation guns
-frequence converter for speed of guns move up&down
-ceiling mouted LED ligting for high visibility inside chamber
-high efficiency mac-A style cyclone separator reclaimer for recovery of most abrasive media like glass beads, alumina and garnet,etc (mesh#60~#220)
-optional E style cyclone separator claimer for recovery of fine abrasive media.(mesh#220~#320)
-optional heating elements at the bottom of separator reclaimer if using fine abrasive media(mesh#220~#320)
-manual air blow-off gun
-blower motor: 380v, 50Hz, 5.5kw, 3phases 5wires
-cartridge filter style dust collector, with automatic reverse pulse
-compressed air supply: prssure 2~7 bar, air flows 12.2~13.2 cubic meter per minute

Features included with 2222-9
1.safety door interlocks,sandblasting is interrupted while any door is opened
2.large angle observation view window
3.optional perforated rubber protection convered on turntable
4.optional visible end cycle indicator light
5.optional automatic air blow-off cleaning after sandblasting finish
