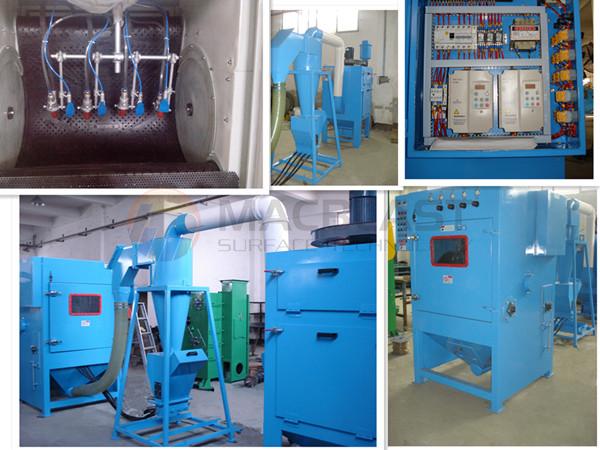

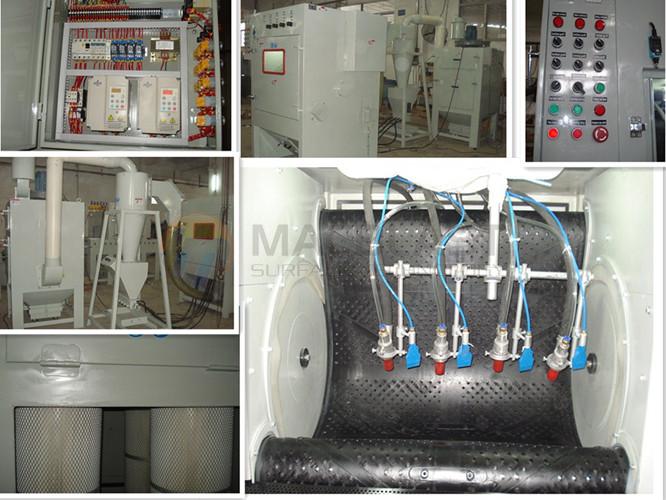

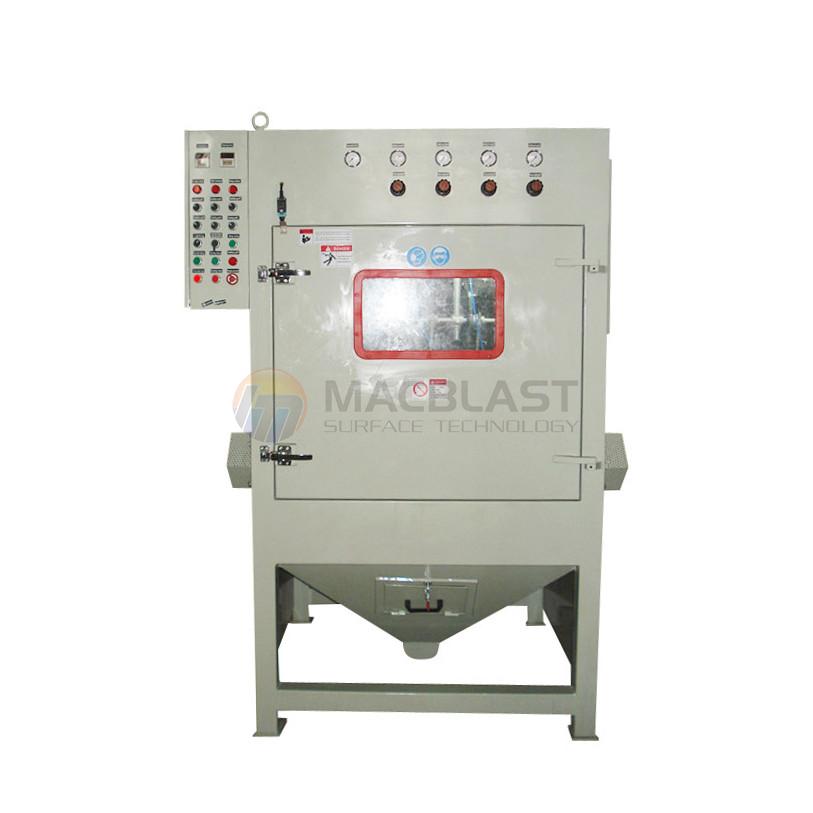

tumble rubber belt type automatic sandblast machine for batch process(1212-4)

Product technical specifications:
This TUMBLE BLAST mac1212-4 is built for our customers who need efficient, reliable and high production blasting, it is maximum 6pcs mac B type sandblasting guns with oscillating gun mount system to ensure maximum coverage.The cabinet can work with most common recyclable abrasive medias, can deliver affordable, batch processing to clean, peen, deburr or finish parts.
Application includes:
remove burrs, parting lines, flashings and other defects from castings and injection molded parts.
shot peen spring, journals, bearings, valve stems, tools and other products to enhance strength and relibility.

-model: mac-1212-4
-overall dimension: 1200*1560*2380mm
-dimension of work cabinet: 1200*1200*850mm
-4pcs oscillating sandblast guns,each with boron carbide nozzle 8*20*60mm
-adjustable mounts allow the automatic blast guns to be set at the appropriate angle and distance from the products being blasted
-PLC control for tumble rubber belt and sandblast guns
-inverter for speed of tumble belt and sandblast gun
-ceiling mouted LED ligting for high visibility inside chamber
-high efficiency mac-A type cyclone separator for recovery of fine abrasive media
-optional heating elements at the bottom of cyclone if using fine abrasive media
-automatic air blow-off system
-fan motor: 380v, 50Hz,3.0kw,3phases, or customized fan motor if other media
-cartridge filter with reverse pulse system
-compressed air supply: prssure 2~7 bar, air flows 3.6~4.5 cubic meter per minute
-suitable for aluminum oxide, glass beads and other abrasive media, mesh#46~#220
