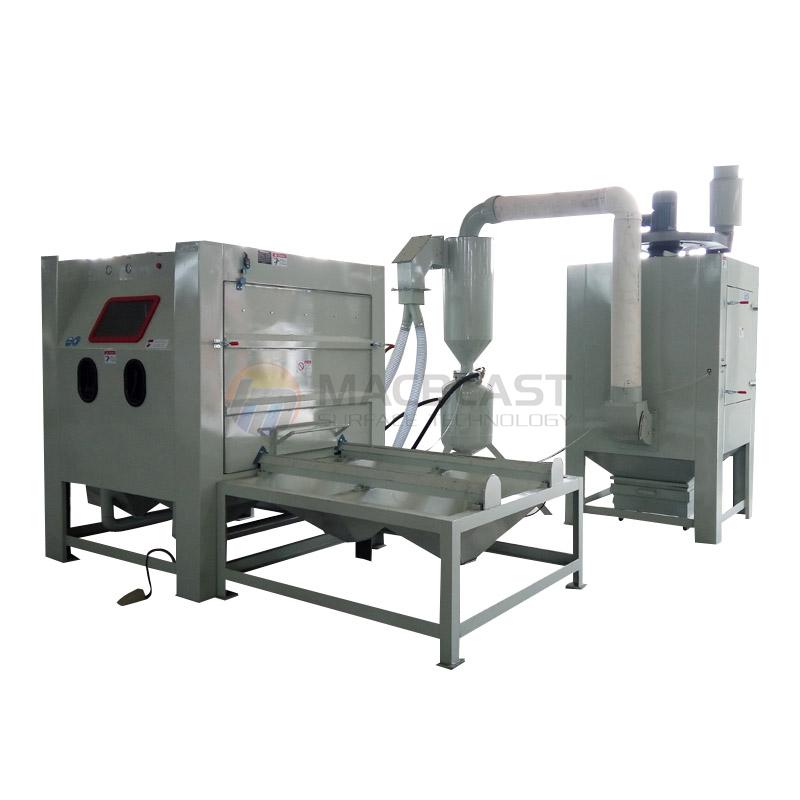

customized solutions manual pressure sandblasting cabinet with manual trolley and turntable for mould(1515P-F)

Product technical specifications:

Our MACBLAST series dryblast cabinets are constructed of high quality steel plate and materials, which can deliver efficient, affordable media blasting to clean, deburr, or finish parts. mac-1212 is available in suction and pressure blast models, and accepts customers' popular options like turntable and tracks for heavy parts, vertical doors to speed loading, and other options plus modifications.
Also available with optional reverse pulse dust collector.
For tough cleaning job, pressure type blasting works higher abrasive velocity for greater impact intensity,compared to suction blasting, and can increase your production rate by as much as 300%.
model: 1515P-F
-overall dimension: 1500X3000*2050mm
-dimension of work chamber: 1500*1500*850mm
-mac-A type cyclone separator,diameter of which 350mm

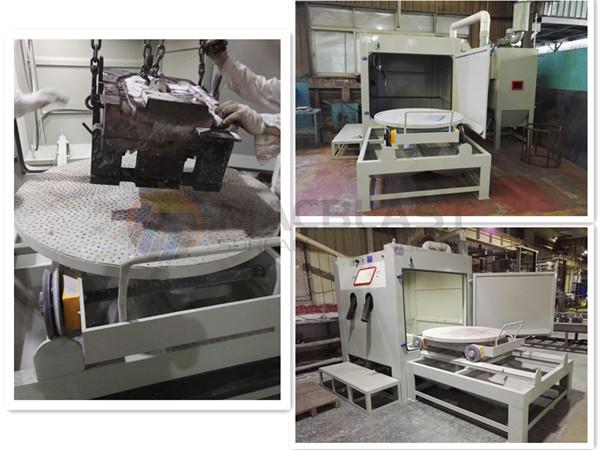

-manual workcar and tracks for turntable, optional motorized type
-one piece of mac pressure sandblasting gun, with 8*20*35mm boron carbide nozzle;one piece of air blower gun
-pressure type sandblasting
-suitable for aluminum oxide, glass beads and other abrasive media, mesh#36~#120
-bag filter type dust collector, optional cartridge filter type with reverse pulse system
-fan motor: 380, 50hz, 3phase, 2200w, or customized if use other abrasive media
-compressed air supply: pressure 2~7 bar, air flows 1.8~2.2 cubic meter per minute

Main features of our sandblasting series:
1.newly compact and ergonomic design ensures saving of space and usage, simply connect to your air and electric supply, very easy for operation
2.superior quality construction combined with outstanding reliability guarantees years of satisfaction
3.good process efficiency and low energy consumption
4.cyclone separator for recovery of abrasive media and detach useful media from dust and reduce media consumption
5.conveniently angled large window and illumination allow very good visibility
6.quality electrical components and parts for a long life use
7.offer many options to meet customers' requirements, like cartridge filter, motorized rotating basket, safes witch,trolley&turntable, boron carbide nozzle or tungsten steel nozzle, aluminum alloy gun holder/gun set,etc

Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc. 3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc
