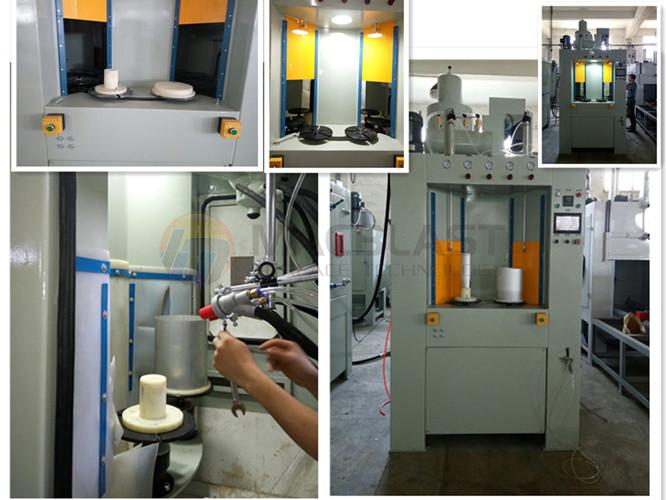

PLC indexing turntable automatic sandblasting machine(MAC1416-8)

Product technical specifications:
This PLC indexing turntable type automatic sandblasting machine is designed and developed for complex structures like turbo impellers or car rims,etc.it is a versatile, can switch quickly from cleaing one part to another, changing fixtures and repositioning blast guns just takes a few minutes, our mac1416 come figured for either 2-station or single station indexing. two-station indexing puts 2 parts in each of blast, blow-off and load positions.Single station indexing allows multi-step blasting, like inside, outside, top and bottom.
-model: mac-1416-8
-overall dimension: 1400*1600*2580mm
-dimension of work cabinet: 1400*900*850mm

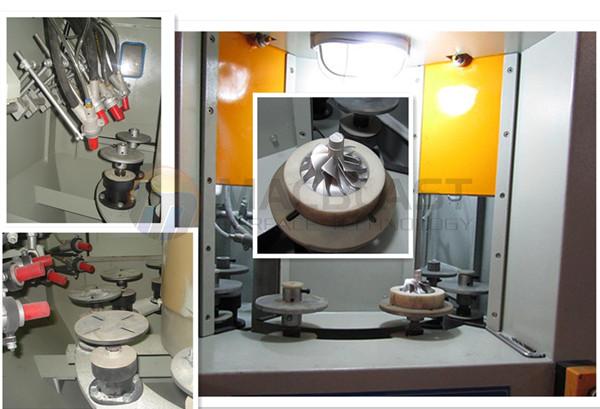

-indexing turntable, rotating satellites, automatic blow-off
-fingertip process controls for timer and parts rotation
-8pcs low profile rotating satellites and generous 20*30mm cylinder door opening accommodate a wide array of products
-each rotating satellites can support up to 10kgs, including the products being blasted and the fixture to hold it in place
-adjustable mounts allow the automatic blast guns to be set at the appropriate angle and distance from the products being blasted
-PLC control for turntable and blasting guns

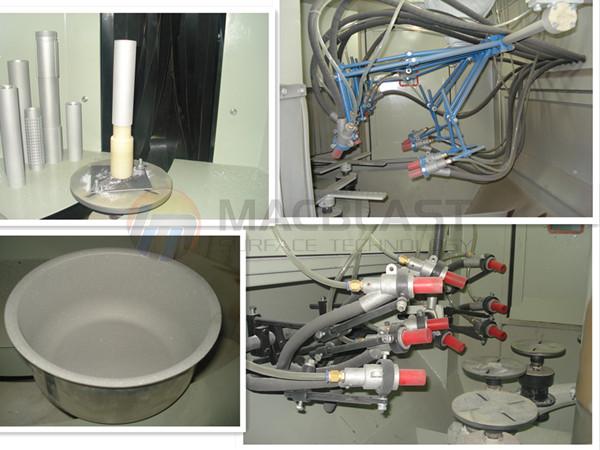

-8 pieces of mac-B suction sandblasting gun, with 8*20*60mm boron carbide nozzle
-guns are mounted on oscillation devices, optional up&down move mechanism devices
-ceiling mouted LED ligting for high visibility inside chamber
-high efficiency mac-E type cyclone separator for recovery of fine abrasive media
-optional heating elements at the bottom of cyclone if using fine abrasive media
-automatic air blow-off system
-fan motor: 380v, 50Hz,5.5kw,3phases, or customized
-cartridge filter with reverse pulse system
-compressed air supply: prssure 2~7 bar, air flows 7.2~8.5 cubic meter per minute
-suitable for aluminum oxide, glass beads and other abrasive media, mesh#46~#220

Main features of our sandblasting series:
1.newly compact and ergonomic design ensures saving of space and usage, simply connect to your air and electric supply, very easy for operation
2.superior quality construction combined with outstanding reliability guarantees years of satisfaction
3.good process efficiency and low energy consumption
4.cyclone separator for recovery of abrasive media and detach useful media from dust and reduce media consumption
5.conveniently angled large window and illumination allows very good visibility
6.quality electrical components and parts for a long life use
7.offer many options to meet customers' requirements, like cartridge filter, motorized rotating basket, safes witch,trolley&turntable, boron carbide nozzle or tungsten steel nozzle, aluminum alloy gun holder/gun set,etc

Application range:
1.pre-treatment before electroplating, painting or coating to improve adhesion
2.hammer forging, pressing, de-oxide by thermal treatment, de-rust,renovation
3.surface treatment for all metal products, glass and plastic products, also stone and jewelry,etc.
